21.5'' Stainless Steel Waterproof Panel PC With Control Buttons For CNC Industrial Automation
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Size | 21.5 Inches | Expansion Slot | PCI/PCIe/Mini-PCIe/CF/SD |
|---|---|---|---|
| Housing Material | Die-Casting Aluminum Housing Fanless | Memory | 4GB DDR3L |
| Model | PPC-156P | Operating Humidity | 10%-90% (Non Condensing) |
| Operating Temperature | -20°C To 60°C | Physical Resolution | 1920X1080 Optional |
| Touchscreen Type | 5 Wire Resistive Touch,10 Points Pcap Touch | View Angles | 89/89/89/89 |
| Working Temperature | -10℃ To 60℃ ,-20℃ To 70℃ | ||
| High Light | 21.5'' Waterproof Panel PC,Stainless Steel Waterproof Panel PC,CNC Industrial Automation Waterproof Panel PC |
||
Product Description
21.5" stainless steel waterproof panel PC with control buttons for CNC industrial automation
FEATURES
• Easy-to-clean, true flat front surface without bezel
• Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA
• Built-in function buttons for intuitive operation
• Eliminates dust and debris build-up at the edge and corners of the display
• Provides improved power efficiency and reduced consumption
• PCAP touch control with responding to a light touch to activate response
• Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel
• Aluminum front bezel and steel chassis construction designed for harsh and industrial environments
Specifications:
OPTIONALS
| • DC 24V, DC9-36V, AC100-240V | • Optical bonding, High brightness |
| • Resistive touch screen, tempered glass, AR/AG | • WIFI, 4G/5G, GPS |
DISPLAY
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 21.5”/16:9 | |
| Active Area/ Pixel Pitch | 476.64(H) x268.11(V)mm/0.24825× 0.24825mm | |
| Native Resolution/ Colors | 1920 x 1080/16.7M | |
| Brightness/ Contrast | 250cd/㎡/1000:1 | |
| Response Time/ Viewing Angle(Typical) | 5ms/89/89/89/89 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | Android Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17, 1.8GHz (RK3399/RK3568/RK3588 optional) | Intel® Celeron J1900//J4125/J6412 2.0GHz | Intel® Core i3/i5/i7 |
| Chipset | RK3288 | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory | 2GB; 4GB Optional
| Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412) | 2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB DDR4 SODIMM ×2 (8th~11th gen.) |
| Storage | 8GB: 16GB/32GB/64GB Optional
| 1×MSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD | 1×MSATA, 1×SATA 1×M.2 Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD Graphics (By CPU) | Intel HD/UHD Graphics (By CPU) |
| I/O | 1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 1 × COM(Optional); 1 × TF Card Support 8~128GB | 1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; COM port(optional); 1×Realtek ALC662 Line-Out /MIC IN | 1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; 1×COM max. 6; 1×Realtek ALC662 Line-Out /MIC IN |
| LAN | 1×10/100/1000Mbps Ethernet | 1× 10/100/1000Mbps Ethernet( Dual LAN optional) | 1×10/100/1000Mbps Ethernet( Dual LAN optional) |
| OS | Android 7.1/8/10/11 Linux Ubuntu(optional) | Windows 7/10, Linux Windows 11(available for J4125/J6412) | Windows 7/10, Linux Windows 11(available for 7th gen. or above) |
GENERAL
| Power | Input Voltage | DC 12V input |
| Operation/Power Saving | 18~30W | |
| Environment Considerations | Operating Temperature | -10~60℃ (-20~70℃ optional) |
| Storage Temperature | -20~70℃ | |
| Relative Humidity | 10%~90% | |
| Order Information | 21.5” Integrated Buttons Panel PC with PCAP Touch RK3288/ITD21PPCT5OE1 | |
| 21.5” Integrated Buttons Panel PC with Resistive Touch RK3288/ITD21PPCT1OE1 | ||
| 21.5” Integrated Buttons Panel PC with PCAP Touch RK3568/ITD21PPCT5OE3 | ||
| 21.5” Integrated Buttons Panel PC with Resistive Touch RK3568/ITD21PPCT1OE3 | ||
| 21.5” Integrated Buttons Panel PC with PCAP Touch J1900/ITD21PPCT5OJ1 | ||
| 21.5” Integrated Buttons Panel PC with Resistive Touch J1900/ITD21PPCT1OJ1 | ||
| 21.5” Integrated Buttons Panel PC with PCAP Touch J4125/ITD21PPCT5OJ4 | ||
| 21.5” Integrated Buttons Panel PC with Resistive Touch J4125/ITD21PPCT1OJ4 | ||
| 21.5” Integrated Buttons Panel PC with PCAP Touch J6412/ITD21PPCT5OJ6 | ||
| 21.5” Integrated Buttons Panel PC with Resistive Touch J6412/ITD21PPCT1OJ6 | ||
| 21.5” Integrated Buttons Panel PC with PCAP Touch i3/ITD21PPCT5OI3 | ||
| 21.5” Integrated Buttons Panel PC with Resistive Touch i3/ITD21PPCT1OI3 | ||

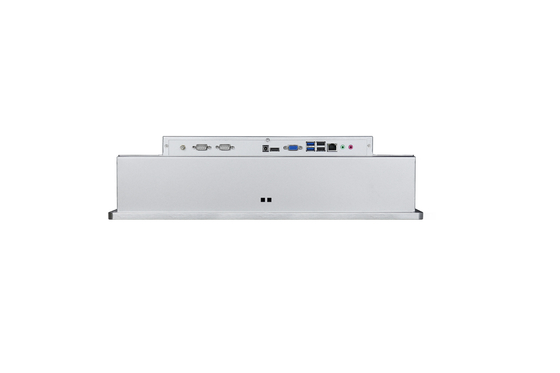

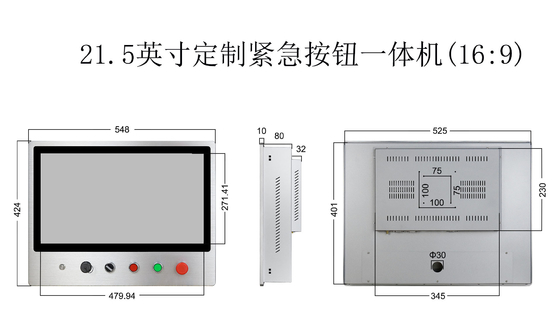

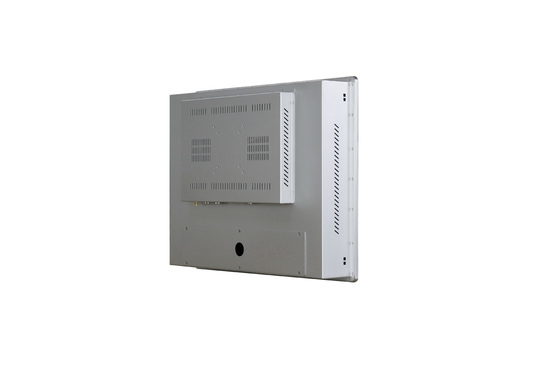

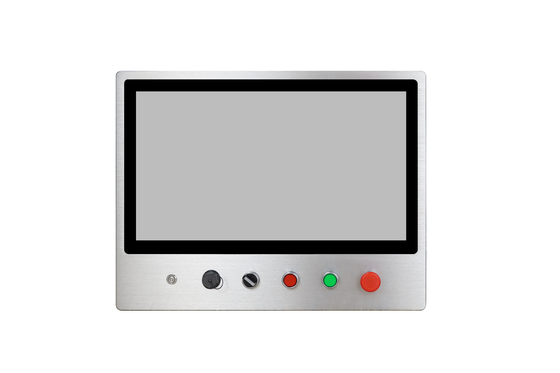

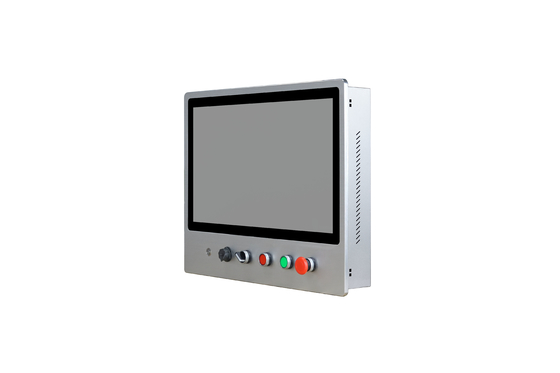

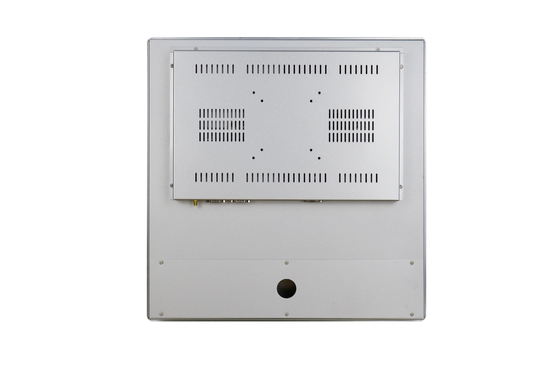

Product Display
