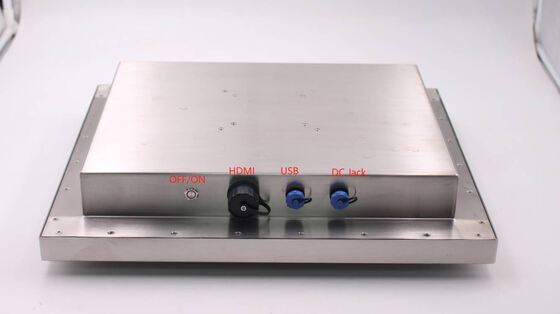

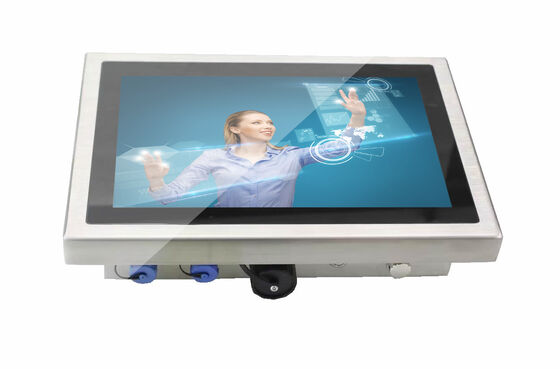

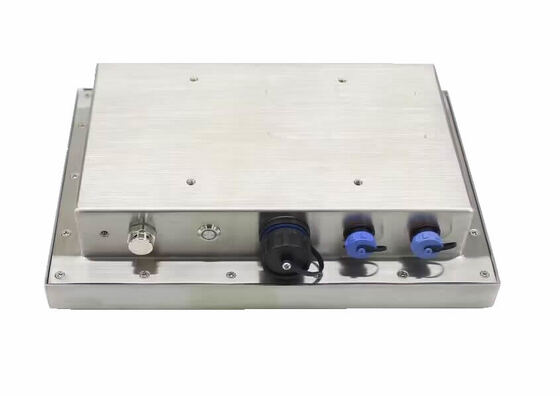

17" Optical Bonding Full IP66/IP67 Stainless Steel Rugged Panel PC Waterproof Dust Proof Stainless Steel AIO
Product Details
| Touch Screen | 10-point Capacitive Touch | CPU | Intel J1900,i3,i5,i7 |
|---|---|---|---|
| Protection Level | IP65/IP66/IP67/IP69K | Working Temperature | -10℃ To 60℃ |
| Product Name | Waterproof Panel PC | Storage | 64GB SSD,128GB,256GB,512GB,1TB |
| Humidity | 10% To 90% RH | ||
| Highlight | 17 inch rugged panel PC,IP66 waterproof stainless steel PC,optical bonding industrial panel PC |
||
Product Description
17" Optical Bonding Full IP66/IP67 Stainless Steel Rugged Panel PC Waterproof Dust Proof Stainless Steel AIO
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 15”/4:3 | |
| Active Area/ Pixel Pitch | 304.128(W) × 228.096(H)mm/0.297 × 0.297mm | |
| Native Resolution/ Colors | 1024×768 / 16.7M | |
| Brightness/ Contrast | 350cd/㎡(500~1000cd/㎡optional)/800:1 | |
| Response Time/ Viewing Angle(Typical) | 16ms/80/80/80/80 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | ARM Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17, 1.8GHz (RK3399/RK3568/RK3588 optional) | Intel® Celeron J1900//J4125/J6412 2.0GHz | Intel® Core i3/i5/i7 |
| Chipset | Rockchip | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory |
2GB; 4GB Optional |
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412) |
2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB DDR4 SODIMM ×2 (8th~11th gen.) |
| Storage |
8GB: 16GB/32GB/64GB Optional |
1×MSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD |
1×MSATA, 1×SATA 1×M.2 Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD/UHD Graphics (By CPU) | Intel HD/UHD Graphics (By CPU) |
| Default Waterproof M12 I/O |
2 × USB, 1 × RJ45, 1 × DC More Waterproof I/Os optional (1 × TF Card Slot Support 8~128GB) |
2 × USB, 1 × COM, 1 × RJ45, 1 × DC More Waterproof I/Os optional |
2 × USB, 1 × COM, 1 × RJ45, 1 × DC More Waterproof I/Os optional |
| LAN | 1×10/100/1000Mbps Ethernet | 1× 10/100/1000Mbps Ethernet( Dual LAN optional) | 1×10/100/1000Mbps Ethernet( Dual LAN optional) |
| OS |
Android 7.1/8/10/11,etc. Linux Ubuntu(optional) |
Win 7/10, Linux Win 11(available for J4125/J6412) |
Win 7/10, Linux Win 11(available for 7th gen. or above) |
GENERAL
| Power | Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 15~35W | |
| Environmental Considerations | Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ | |
| Relative Humidity | 10%~90%(Non-Condensing) |
Customization:
ITD provides custom services for IP65 Panel PC, with the following product attributes:
- Brand Name: ITD
- Model Number: ITD19PPCT5IPS*
- Place of Origin: China
- Certification: CE,ROHS,FCC
- Minimum Order Quantity: 1
- Packaging Details: foam,master carton
- Delivery Time: a month
- Payment Terms: T/T in advance
- RAM: DDR3L 4GB
- Expansion Slots: Mini-PCIe, SIM Card Slot
- Power Supply: DC 12V
- I/O Ports: USB, HDMI, LAN, COM, Audio
- CPU: Intel J1900,i3,i5,i7
- Special Feature: IP66 protection grade, waterproof and dustproof, suitable for food industry, vandal-proof
Support and Services:
We provide technical support and service for our IP65 Panel PC. Our technical support team is available 24/7 to help you with installation, troubleshooting, and other inquiries.
We also offer extended warranty plans to cover up to 5 years of repair and replacement. Our dedicated team of engineers and technicians are ready to provide support and help you get the most from your IP65 Panel PC.
