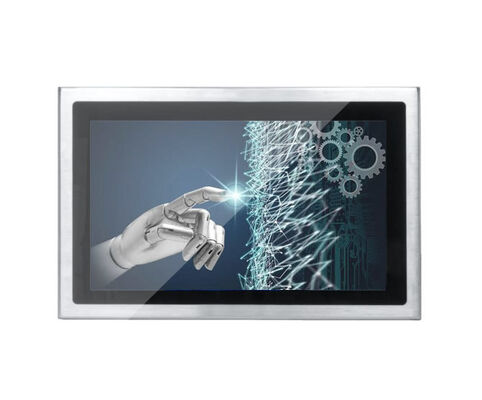

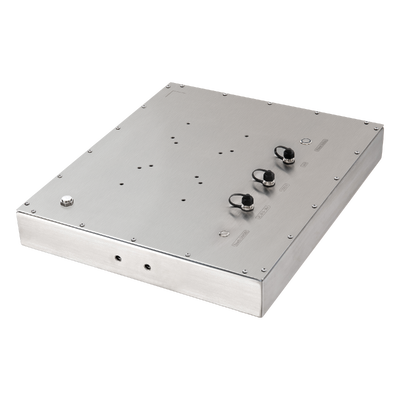

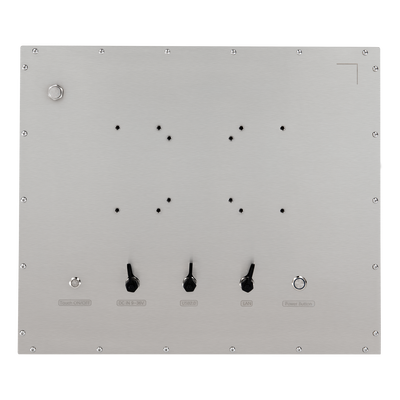

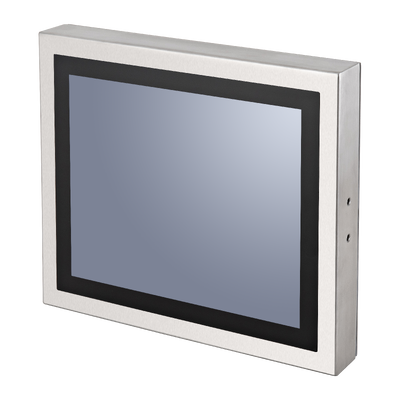

12.1" IP69K Stainless Steel Touch Panel PC, Waterproof Industrial Computer with PCAP Touch Screen
Product Details
| Touch Screen | 10-point Capacitive Touch | CPU | Intel J1900,J6412,J4125,i3,i5,i7,Android |
|---|---|---|---|
| Protection Level | IP65/IP66/IP67/IP69K | Working Temperature | -10℃ To 60℃ |
| Product Name | Waterproof Panel PC | Storage | 64GB SSD,128GB,256GB,512GB,1TB |
| Humidity | 10% To 90% RH | Resolution | 1280 × 800 |
| Highlight | 12.1 inch IP69K waterproof industrial computer,stainless steel touch panel PC,PCAP touch screen industrial PC |
||
Product Description
12.1" IP69K Stainless Steel Touch Panel PC, Waterproof Industrial Computer with PCAP Touch Screen
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 12.1” 16:10 | |
| Active Area/ Pixel Pitch | 262.565(W) × 164.16(H)/0.2052 × 0.2052mm | |
| Native Resolution/ Colors | 1280 × 800 /16.7M | |
| Brightness/ Contrast | 350cd/㎡(500~1000cd/㎡optional)/1000:1 | |
| Response Time/ Viewing Angle(Typical) | 30ms/85/85/85/85 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | ARM Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568/RK3588 optional) | Intel® Celeron J1900/J4125/J6412 2.0GHz |
Intel® Core i3/i5/i7 (4th~12th Generation optional) |
| Chipset | Rockchip | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory |
2GB; 4GB/8GB Optional
|
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412) |
2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB DDR4 SODIMM ×2 (8th~12th gen.) |
| Storage |
8GB; 16GB/32GB/64GB/128G Optional
|
1×mSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD |
1×mSATA, 1×SATA 1×M.2 Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD/UHD Graphics (By CPU) | Intel HD/UHD Graphics (By CPU) |
| Default Waterproof M12 I/O |
2 × USB, 1 × RJ45, 1 × DC More Waterproof I/Os optional |
2 × USB, 1 × COM, 1 × RJ45, 1 × DC More Waterproof I/Os optional |
2 × USB, 1 × COM, 1 × RJ45, 1 × DC More Waterproof I/Os optional |
| LAN | 1×10/100/1000Mbps Ethernet | 1× 10/100/1000Mbps Ethernet( Dual LAN optional) | 1×10/100/1000Mbps Ethernet( Dual LAN optional) |
| OS |
Android 7.1/8/10/11/12, etc. Linux Ubuntu(optional) |
Win 7/10, Linux Win 11(available for J4125/J6412) |
Win 7/10, Linux Win11(available for 7th gen. or above) |
GENERAL
| Power | Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 15~30W | |
| Environmental Considerations | Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ | |
| Relative Humidity | 10%~90%(Non-Condensing) | |
| Order Information | 12.1” 16:10 IP69K Stainless Steel Android Panel PC with Resistive Touch: ITD12PPCT1IPSExW-69K | |
| 12.1” 16:10 IP69K Stainless Steel Android Panel PC with PCAP Touch: ITD12PPCT5IPSExW-69K | ||
| 12.1” 16:10 IP69K Stainless Steel J1900 Panel PC with Resistive Touch: ITD12PPCT1IPSJ1W-69K | ||
| 12.1” 16:10 IP69K Stainless Steel J1900 Panel PC with PCAP Touch: ITD12PPCT5IPSJ1W-69K | ||
| 12.1” 16:10 IP69K Stainless Steel J4125 Panel PC with Resistive Touch: ITD12PPCT1IPSJ4W-69K | ||
| 12.1” 16:10 IP69K Stainless Steel J4125 Panel PC with PCAP Touch: ITD12PPCT5IPSJ4W-69K | ||
| 12.1” 16:10 IP69K Stainless Steel J6412 Panel PC with Resistive Touch: ITD12PPCT1IPSJ6W-69K | ||
| 12.1” 16:10 IP69K Stainless Steel J6412 Panel PC with PCAP Touch: ITD12PPCT5IPSJ6W-69K | ||
| 12.1” 16:10 IP69K Stainless Steel i3 Panel PC with Resistive Touch: ITD12PPCT1IPSI3W-69K | ||
| 12.1” 16:10 IP69K Stainless Steel i3 Panel PC with PCAP Touch: ITD12PPCT5IPSI3W-69K | ||
| 12.1” 16:10 IP69K Stainless Steel i5 Panel PC with Resistive Touch: ITD12PPCT1IPSI5W-69K | ||
| 12.1” 16:10 IP69K Stainless Steel i5 Panel PC with PCAP Touch: ITD12PPCT5IPSI5W-69K | ||
| 12.1” 16:10 IP69K Stainless Steel i7 Panel PC with Resistive Touch: ITD12PPCT1IPSI7W-69K | ||
| 12.1” 16:10 IP69K Stainless Steel i7 Panel PC with PCAP Touch: ITD12PPCT5IPSI7W-69K | ||
| 12.1” 16:10 IP69K Stainless Steel Panel PC with Tempered Glass No Touch: ITD12PPCG1IPSxxW-69K | ||
| 12.1” 16:10 1000nits IP69K Stainless Steel Panel PC with Touch: ITD12PPCG1HBIPSxxW-69K | ||
Support and Services:
We provide technical support and service for our IP65 Panel PC. Our technical support team is available 24/7 to help you with installation, troubleshooting, and other inquiries.
We also offer extended warranty plans to cover up to 5 years of repair and replacement. Our dedicated team of engineers and technicians are ready to provide support and help you get the most from your IP65 Panel PC.
