17" Optical Bonding Full IP66 Stainless Steel Rugged Panel PC Waterproof Dust Proof Stainless Steel AIO
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD17PPCT5IPS** |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 15-20 Business Days |
| Payment Terms | T/T, PayPal(173515844@qq.com) |
| Supply Ability | 1000PCS/Month |
Product Details
| IP Rating | IP66/IP67 | Touch Options | Resistive, PCAP |
|---|---|---|---|
| Resolution | 1024x768 | System | Intel J1900/i3/i5/i7,Android |
| Serial Ports | 1x COM (Optional) | USB Ports | 1 X USB 2.0(Waterproof Connector And Cable) |
| Power Port | 1 X 12V DC Jack(Waterproof Connector And Cable) | Material | 304/316 Stainelss Steel |
| Highlight | 17 inch rugged panel PC,IP66 waterproof panel PC,stainless steel AIO panel PC |
||
Product Description

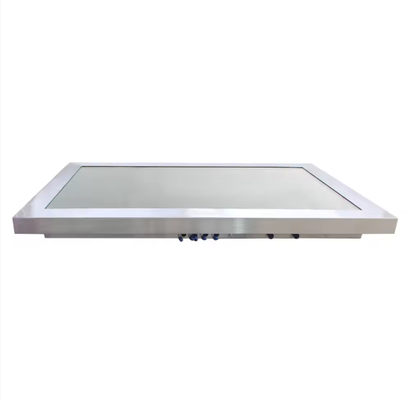

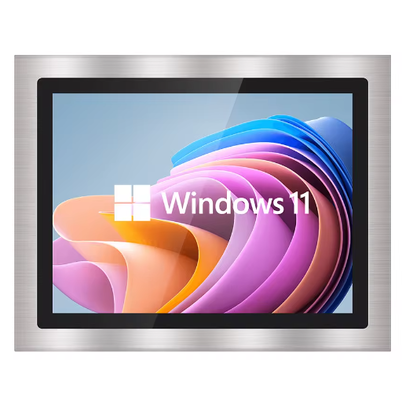

17" Optical Bonding Full IP66 Stainless Steel Rugged Panel PC Waterproof Dust Proof Stainless Steel AIO
The ITD Full IP65/IP66 panel PCs series is high-performance ARM based or x86 based PC system integrated that meets all hygiene regulation standards in the food, beverage, chemical, pharmaceutical, consumer packaged goods, biotechnology process manufacturing and outdoor application. This waterproof PCs series has a wide range of sizes option, with complete stainless-steel chassis and anti-corrosive. This HMI system features fan-less design and IP65/NEMA 4X sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration while meeting required EMI/RFI resistance compliance.
FEATURES of stainless steel panel PC
Specifications:
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 17” 5:4 | |
| Active Area/ Pixel Pitch | 337.92(W) × 270.336(H)/0.264× 0.264mm | |
| Native Resolution/ Colors | 1280 × 1024 /16.7M | |
| Brightness/ Contrast | 350cd/㎡(500~1500 cd/㎡optional)/1000:1 | |
| Response Time/ Viewing Angle(Typical) | 3.5/1.5ms/85/85/80/80 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | ARM Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568/RK3588 optional) | Intel® Celeron J1900/J4125/J6412 2.0GHz |
Intel® Core i3/i5/i7 (4th~12th Generation optional) |
| Chipset | Rockchip | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory |
2GB; 4GB/8GB Optional
|
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412) |
2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB DDR4 SODIMM ×2 (8th~12th gen.) |
| Storage |
8GB; 16GB/32GB/64GB/128G Optional
|
1×mSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD |
1×mSATA, 1×SATA 1×M.2 Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD/UHD Graphics (By CPU) | Intel HD/UHD Graphics (By CPU) |
| Default Waterproof I/O |
2 × USB, 1 × RJ45, 1 × DC More Waterproof I/Os optional |
2 × USB, 1 × COM, 1 × RJ45, 1 × DC More Waterproof I/Os optional |
2 × USB, 1 × COM, 1 × RJ45, 1 × DC More Waterproof I/Os optional |
| LAN | 1×10/100/1000Mbps Ethernet | 1× 10/100/1000Mbps Ethernet( Dual LAN optional) | 1×10/100/1000Mbps Ethernet( Dual LAN optional) |
| OS |
Android 7.1/8/10/11,etc. Linux Ubuntu(optional) |
Win 7/10, Linux Win 11(available for J4125/J6412) |
Win 7/10, Linux Win 11(available for 7th gen. or above) |
GENERAL
| Power | Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 20-45W | |
| Environmental Considerations | Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ |
Product Display:
